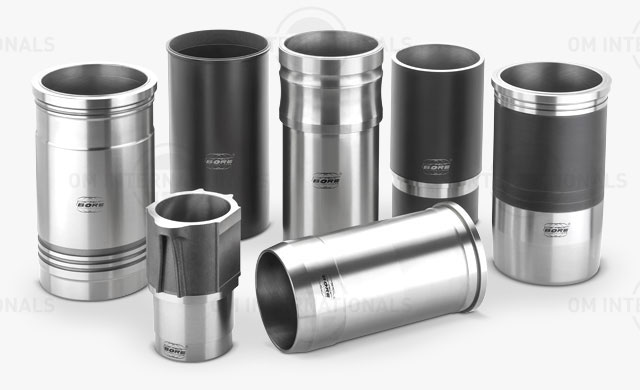

Cylinder Liners

Cylinder Liners
  • Centrifugally Cast cylinder liner liners & sleeves with precise machining.
  • Manufactured with isFG220/ASTM material specification with chromium & nickel elements
  • Micro structure & chemical composition analysis of each and every batch.
  • Fine Plateau Honed cylinder liner bore.
  • Cylindrical Grinning to archive geometrical parameters.
  • Randomly inspection of honing angle and structure of cylinder liners.
  • Randomly tensile strength and profiles.
  • 100% Dimensional inspection of finished cylinder liners.
  • 30000 pieces Production Capacity of cylinder liners per month.
  • We produce more than 1200 various models of cylinder liners for truck, Tractors and Cars worldwide.

Cylinder Liners

Cylinder Liners
  • Cast Iron Cylinder Liner
  • Wet Cylinder Liner
  • Dry Cylinder Liner
  • Phosphate Coating Liner
  • Cromard Cylinder Liner

Air Cooled Block

Air Cooled Block
  • Air Cooled Cylinder Liner
  • Water Cooled Cylinder Liner
  • Finned Cylinder Liner

Range, Specifications & Other Details

Production Capacity

50000 pieces per month

Product Range

  • Cast Iron Cylinder Liner
  • Wet Cylinder Liner
  • Dry Cylinder Liner
  • Photostatted Cylinder Liner
  • Cromard Cylinder Liner
  • Air Cooled Cylinder Liner
  • Water Cooled Cylinder Liner
  • Finned Cylinder Liner

Finishes

Semi-finished & Fully-finished

Product Specifications

Dimension Range (in mm)
Bore Diameter 55 to 200
Outer Diameter 60 to 230
Total Length 110 to 300

Technical Specifications

Material specification standards
India IS-FG 220
Europe GG20, GG25, GG30
American ASTM, A48

Micro Structure

Graphite type: "A" & "B" ("D" & "E" Random)

Flake Size: 4-6 Microns

Free Ferrite: Less Than 5%

Matrix: Lamellar Pearline

Chemical Composition Minimum Maximum
Carbon 2.90 3.50
Silicon 1.80 2.50
Manganese 0.6 1.00
Phosphorus 0.20 0.50
Sulfur 0.00 0.12

Note: Also we can add cast material compositions using Chromium, Molybdenum, Nickel, Cooper as per customer specifications meeting to international standards.

Hardness (BHN) 210 to 280
Tensile (BHN) 210 to 280 n/mm2

Range of Cylinder Liners & Sleeves
